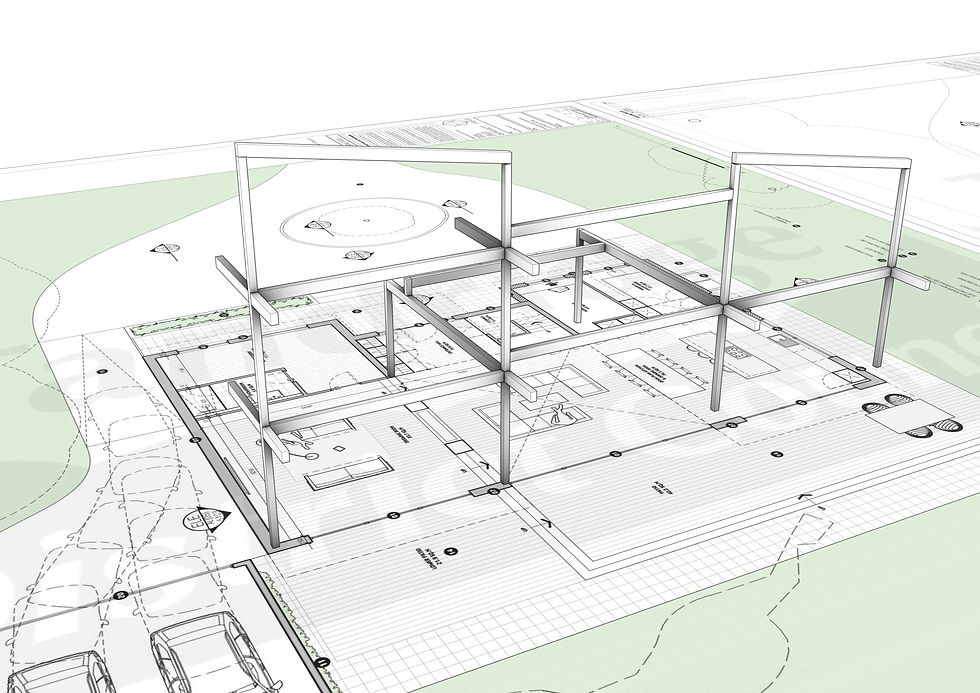

Ridgewood, Northdown Road, Woldingham, CR37BB, UK



House 1

1
1

press to zoom
2
2

press to zoom
29
29

press to zoom
1
1

press to zoom
1/29


Construction Type  E1
External Wall

BBA logo.jpeg

  • 20mm brick slips

  • Brictec tracker board 12mm

  • DPC membrane

  • Timber counter battens 40x60@600mm

  • Fermacell 15mm H2O board

  • Timber structure 120x60/120@600mm

  • Insulation 120mm (Mineral)

  • VCL membrane

  • Timber counter battens 40x60@600mm

  • Insulation 40mm (Mineral)

  • Fermacell 15mm board

  • 3mm skim (not included)

2F - 0 m2
1F - 0 m2
GF - 0 m2


Construction Type  L1
Load Bearing Wall

BBA logo.jpeg

  • 3mm skim (not included)

  • Fermacell 15mm board

  • Timber structure 120x60/120@600mm

  • Insulation 120mm (Mineral)

  • Fermacell 15mm board

  • 3mm skim (not included)

2F - 0 m2
1F - 0 m2
GF - 0 m2


Construction Type  I1
Internal Wall

BBA logo.jpeg

  • 3mm skim (not included)

  • Fermacell 15mm board

  • Timber structure 60x60/120@600mm

  • Insulation 50mm (Mineral)

  • Fermacell 15mm board

  • 3mm skim (not included)

2F - 0 m2
1F - 0 m2
GF - 0 m2


Construction Type  F1
Floor

SCHÉMA STROPU NAD PŘÍZEMÍM I..png
BBA logo.jpeg

  • Acoustic floor (not included)L

  • Perimeter VCL membrane

  • Floor boards 22mm (Chipboard)

  • Timber structure 240x60/80@600mm

  • Insulation 120mm (Mineral)

  • Timber battens 40x60@600mm

  • Plasterboard 12.5mm (not included)

  • Plasterboard 12.5mm (not included)

  • 3mm skim (not included)



2F - 0 m2
1F - 0 m2
GF - 0 m2


Construction Type  R1
Roof

Schéma ploché střešní konstrukce.jpg
BBA logo.jpeg

  • Weatherproof membrane (not included)

  • Flat roof insulation (not included)

  • Vapour control layer (not included)

  • Sarking boards 15mm

  • Timber structure 240x60/80@600mm

  • Insulation 50mm (Mineral)

  • VCL membrane

  • Timber battens 40x60@600mm

  • Plasterboard 12.5mm (not included)

  • Plasterboard 12.5mm (not included)

  • 3mm skim (not included)



2F - 0 m2
1F - 0 m2
GF - 0 m2


Aluminium Window



hlinik spec.png


COMPONENTS
